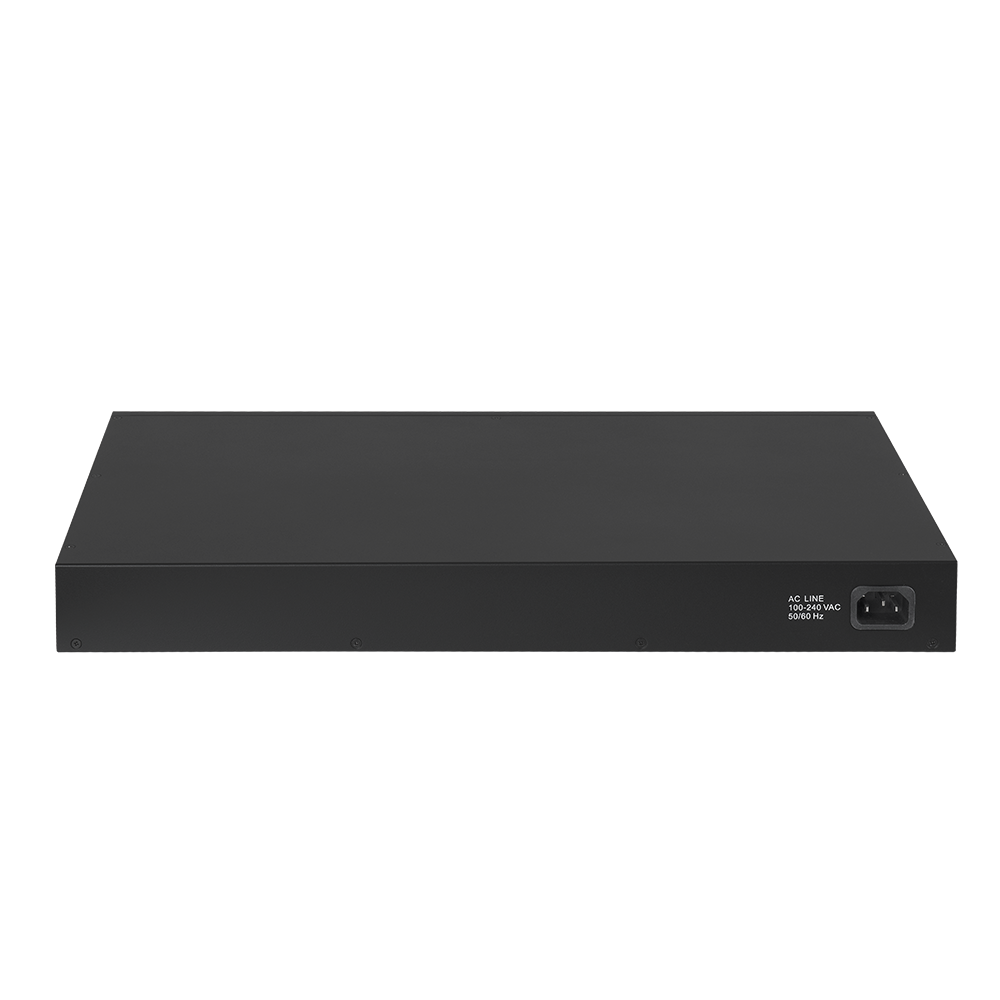

Long Range 24-Port Fast Ethernet PoE+ Web Smart Switch with 4 Gigabit RJ45/SFP Combo Ports
ES-5424P
  • ​Twenty-four Fast Ethernet ports and four Gigabit RJ45/SFP combo ports.
  • IEEE 802.3af/at PoE compliant.
  • Up to 30W per port (total power budget: 280W) for powering PoE-enabled devices.
  • PoE long range mode with Ethernet cable to extend up to 200 meters.
  • Auto-detection of powered devices (PD) and power consumption levels.
  • PoE powered devices (PD) alive check to enhance the reliability of the network.
  • Power backfeed protection to avoid damaging the PoE ports.
  • DHCP snooping to protect the integrity of legitimate DHCP server and its operations.
  • Surge Protection 6KV to avoid the damage of the switch and connected devices.
  • Supports SNMP v3, Access Control List (ACL), QoS, CoS, STP, 802.1Q VLAN, IPv4/IPv6, Port Trunk, IGMP v1/v2/v3 Snooping and Mirror.
  • 12.8Gbps switch capacity.
  • 16K MAC address table and jumbo frame support up to 9KB.
  • 19-inch 1U rack-mount design.



​Cost Effective, Reliable, Scalable and Secure
Switch Solution for SMB Networks

To increase the distance/speed of your network server and backbone connections.



The Edimax Pro ES-5424P smart switch comes with a web-based user interface, 24 Fast Ethernet PoE+ ports and 4 Gigabit RJ45/SFP combo ports for high-speed and long-range copper or optical connections. With smart features of SNMP v3, PoE PD Alive Check, DHCP Snooping, QoS, CoS, STP, 802.1Q VLAN, IPv4/IPv6, Port Trunk, IGMP v1/v2/v3 Snooping and Mirror, the smart switch provides a cost-effective, reliable, scalable and secure switch solution for SMB networks. The Edimax-specific long-range mode enables power and data transmission to up to 200 meters at a speed of 10Mbps, tailored for IP cameras and far away network device applications. The PoE also features auto detection and power backfeed protection to provide power efficiently and, at the same time, avoid damaging the PoE ports. The Edimax ES-5424P is the ideal solution to boost your network environment’s performance and efficiency.



Long Range PoE Distance Extension, up to 200 Meters

The long range mode provides extended power and data delivery distance to up to 200 meters while general Ethernet switches have a distance restriction of 100 meters. The long range mode operates on a per-port basis at 10Mbps full-duplex operation, ideal for devices such as IP cameras, IP phones and PoE-enabled IoT devices at a remote location.

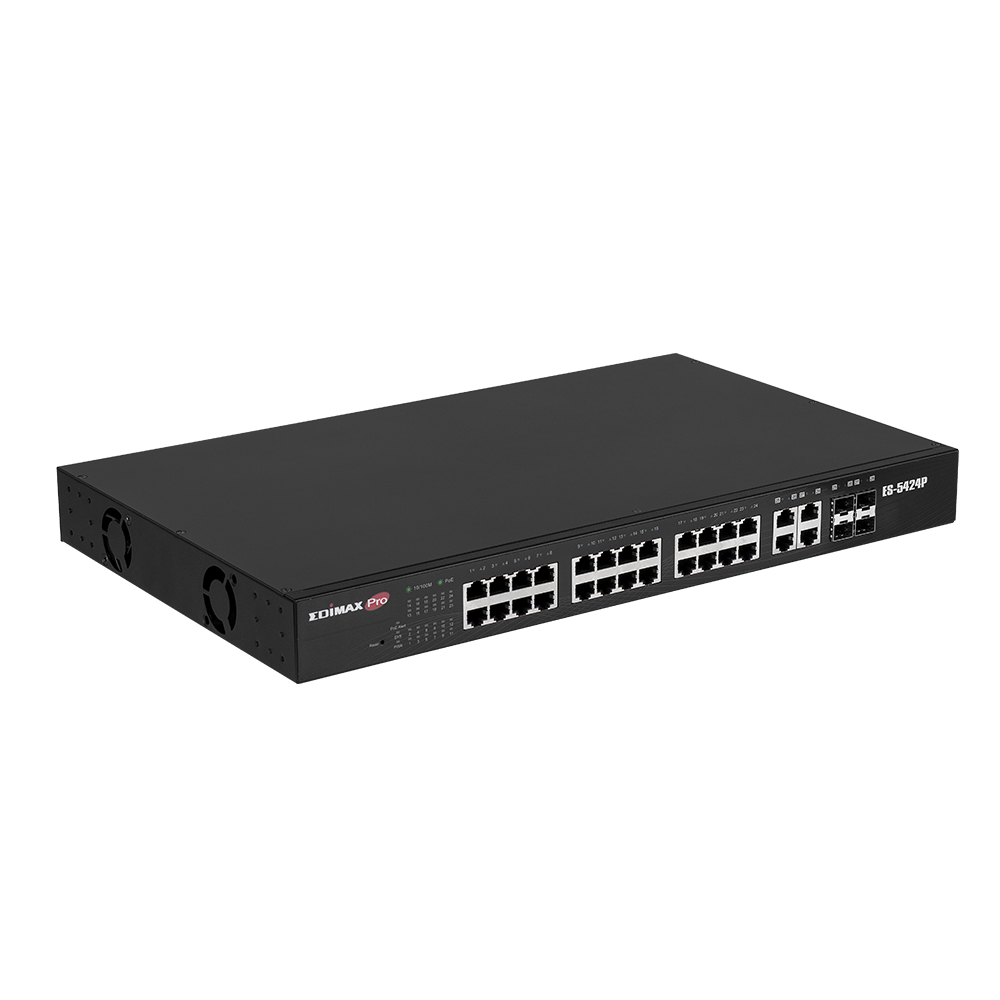

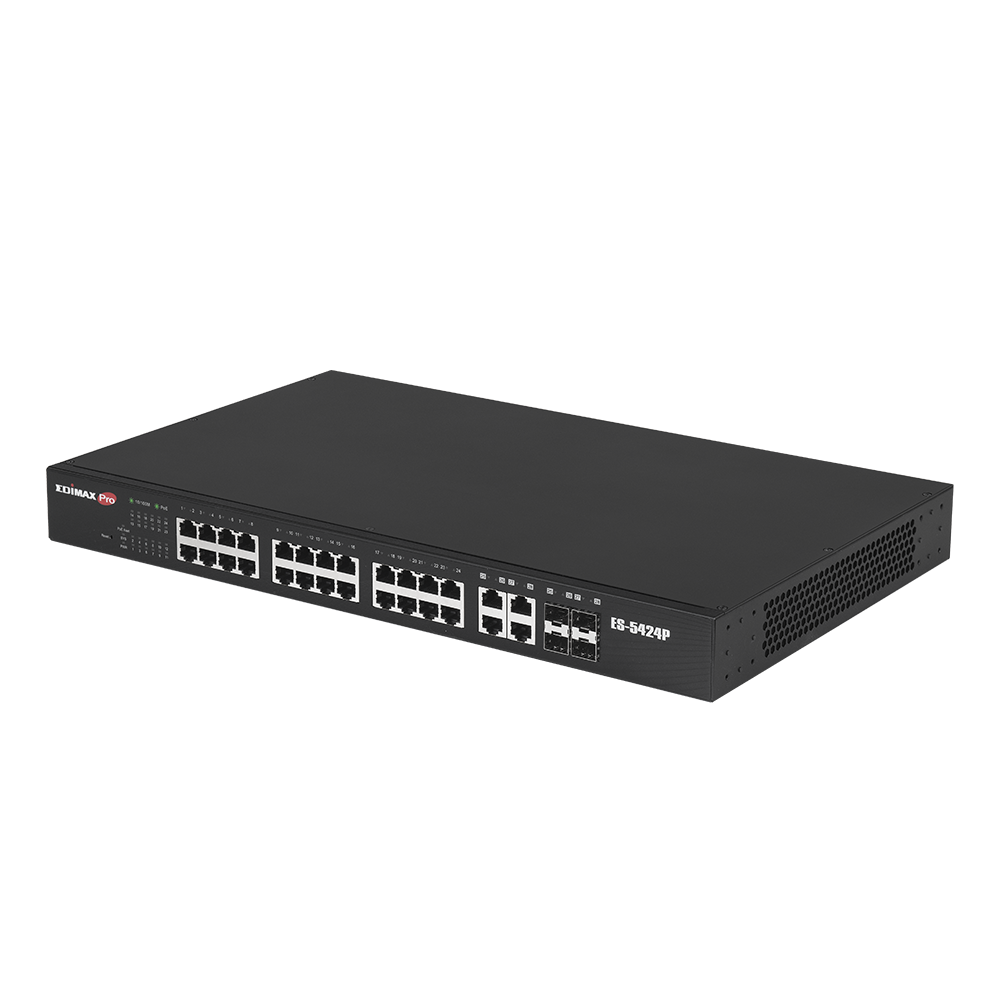

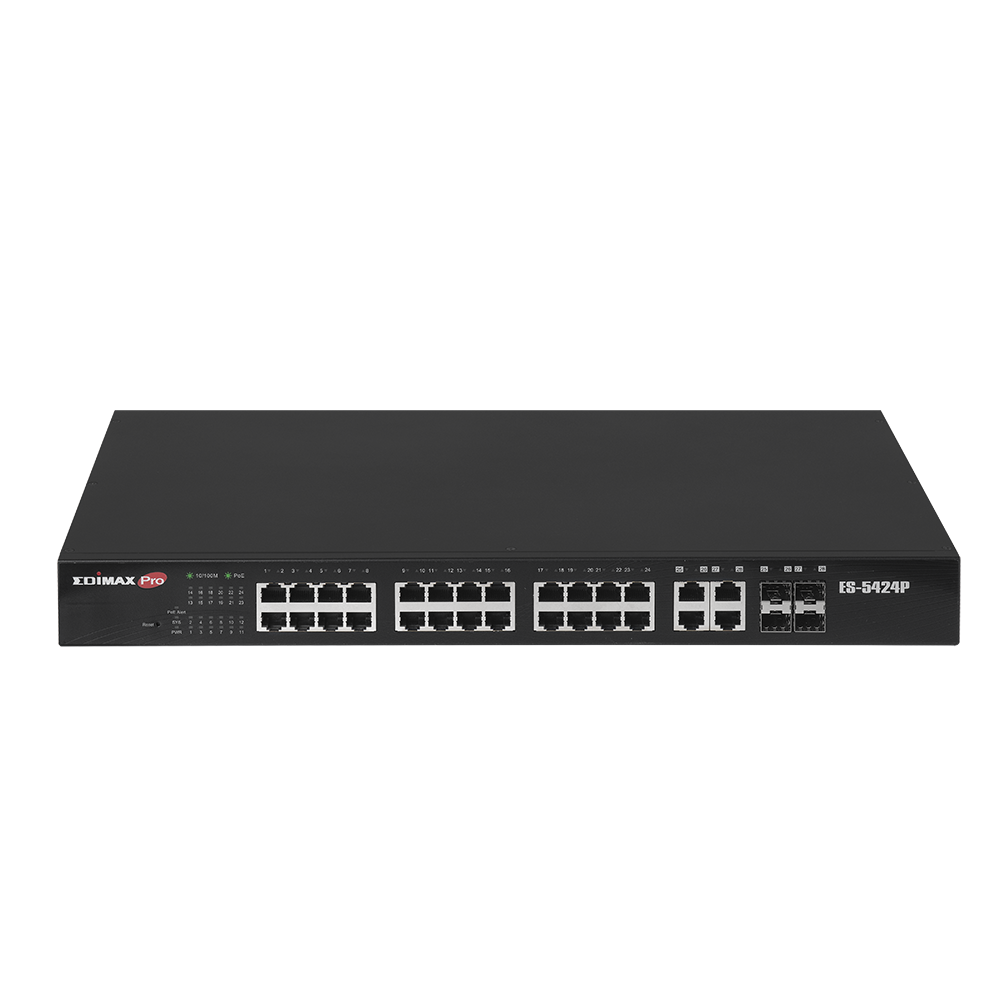

Edimax Pro ES-5424P Long Range 24-Port Fast Ethernet PoE+ Web Smart Switch with 4 Gigabit RJ45/SFP Combo Ports

802.3at PoE with Auto Detection & Power Backfeed Protection

The ES-5424P features 24 IEEE 802.3at Power over Ethernet (PoE+) ports which supply up to 30W of electricity per port and has a total power supply of 280W to power any 802.3at or 802.3af compliant power device. With PoE detection capability, the ES-5424P is able to verify whether the connected device is IEEE 802.3at or 802.3af compliant. If a PoE device is not detected, only network data will be transmitted. Moreover, with the PoE power backfeed protection from the PoE injectors, the ES-5424P is able to avoid damaging the PoE ports.


Edimax Pro ES-5424P Long Range 24-Port Fast Ethernet PoE+ Web Smart Switch with 4 Gigabit RJ45/SFP Combo Ports Backfeed Protection, back feed, Circuit Protection



PoE for Easy Installation and Better Cost Efficiency

Power over Ethernet technology enables the Ethernet cable to carry both data and power, reducing cable installation and eliminating the need for extension cords or electrical outlets on the walls and ceiling. The ES-5424P can effectively lower installation costs and simplify deployment effort. The ES-5424P can be used with different PoE products such as access points, IP cameras or VoIP devices and is an effective solution for network environments where power outlets are difficult to access.


PoE Powered Device Alive Check

Featuring PoE Powered Device (PD) alive check, the switch can be configured to monitor the real-time status of connected PDs by ping action (sending alive-checking packets). If a PD fails to respond, the ES-5424P PoE Switch will reboot the PD, which enhances the reliability of the network and reduces administrator management burden.


DHCP Snooping

The network security feature of DHCP snooping enables the prevention of malicious or malformed DHCP traffic or the mitigation of security risks from rogue DHCP servers. The function monitors DHCP messages received from untrusted devices connected to a switching device in the network and protects the integrity of legitimate DHCP server and its operations.


Smart Tools for Improved Network Efficiency and Security

The switch features smart and simple network monitoring tools that allow for improved network efficiency and security. The web-based interface management features include QoS (Quality of Service) bandwidth control for better traffic control, VLAN (Virtual LAN) for enhanced network security and multicast IGMP snooping v1/v2/v3 for streaming applications. For quick and easy setup, the web-based management integrates advanced management and security functions of Access Control List (ACL), CoS, STP, IPv4/IPv6, Port Trunk, IGMP v1/v2/v3 Snooping, and Mirror.





APPLICATION DIAGRAM



Edimax Pro ES-5424P Long Range 24-Port Fast Ethernet PoE+ Web Smart Switch with 4 RJ45/SFP Combo Ports application

Edimax Pro ES-5424P Long Range 24-Port Fast Ethernet PoE+ Web Smart Switch with 4 RJ45/SFP Combo Ports PoE devices


OPTIONAL ACCESSORY

1000Base-T SX LX SFP Modules / Transceiver

MG-1000 Series V2 1000Base-T SX LX SFP Modules

  • Compliant with IEEE 802.3z Gigabit Ethernet and Fiber Channel standard
  • Plug-and-Play & Hot Pluggable
  • Supports single-mode or multi-mode fiber depends on the SFP modules
  • Max. cable length: 550m to 30km depends on the SFP modules
  • Industrial grade SFP modules with robust design for enhanced reliability



SPECIFICATIONS

HARDWARE
Ports 24 x RJ45 10/100Base-T Fast Ethernet ports
4 x Gigabit RJ45/SFP combo ports
Transmission Method Store and forward
Buttons Reset button
LED Indicators Per Port: Link/Act
PoE: Act/Status
Per Unit: Power
Power Input 100-240V AC, 50-60 Hz, internal power supply
Total Power Budget 280W
Dimensions (L x W x H) 441 × 270 × 45 mm
Weight 3.53 kg
PERFORMANCE
Switching Capacity 12.8Gbps
MAC Address 16K
Buffer Memory 1M bit
Jumbo Frames 16KB
Filtering/Forwarding Rates 1000Mbps port – 1,488,000pps
100Mbps port - 148,800pps
10Mbps port - 14,880pps
POWER OVER ETHERNET
Standard IEEE 802.3af (PoE), IEEE 802.3at (PoE+)
Power Output Up to 30W per port
Pin Assignment 1/2(+), 3/6(-) End-Span (mode A)
Available Power Budget 240W
Management PoE status, PoE on/off, PoE PD alive check, per port priority setting
Long Range Enable long range mode at 10Mbps for cable distance up to 200 meters
Backfeed Protection Built-in
SMART FEATURES
Quality of Service (QoS) Rate limiting on packets sent and received by an interface
Eight queues on each port
WRR, SP, WRR+SP queue scheduling algorithms
Re-marking of the 802.1p priority and DSCP priority
Rate limiting in each queue and traffic shaping on ports
Class of Service (CoS) IEEE 802.1p class of service (SPQ, WRR)
Port-based CoS
IP TOS precedence
802.1p VLAN Information based CoS
DSCP based CoS
TCP/UDP Based CoS
Spanning Tree IEEE 802.1d Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
VLAN Up to 200 VLANs and 4096 VLAN IDs
802.1Q tag-based VLAN
Port-based VLAN
GVRP
IPV6 IPv6 over Ethernet (RFC 2464)
Static IPv6 address and prefix length
Static IPv6 default gateway
IPv6 duplicate address detection
Port Trunking IEEE 802.3ad LACP Trunk-Static trunk up to 6 trunk groups
IGMP Snooping IGMP v1/v2/v3 snooping
Mirror Port mirroring both on ingress and egress traffic
Security Management Access
Storm Control
Dynamic ARP Inspection
DHCP Snooping
Management User Interface: Web-based management
User Account: Login account configuration
Firmware Upgrade: Firmware upgrade by WEB
Syslog: Support event log, alarm log and security log
ENVIRONMENT
Temperature Operating: 0 ~ 50℃
Storage: -40 ~ 70℃
Humidity (Non-condensing) Operating: 10 ~ 90%
Storage: 10 ~ 90%
STANDARDS COMPLIANCE
Standards
IEEE 802.3 10BaseT Ethernet
IEEE 802.3u 100BaseTX Fast Ethernet
IEEE 802.3ab 1000BaseT Gigabit Ethernet
IEEE 802.3z 1000BaseSX/LX
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3at Power over Ethernet Plus (PoE+)
IEEE 802.3x Full-duplex and flow control
IEEE 802.1p Quality of Service (QoS)
IEEE 802.1Q Virtual LANs VLANs
IEEE 802.1d Spanning Tree Protocol(STP)
IEEE 802.1w Rapid Spanning Tree Protocol(RSTP)
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
Certifications FCC Class A, CE
