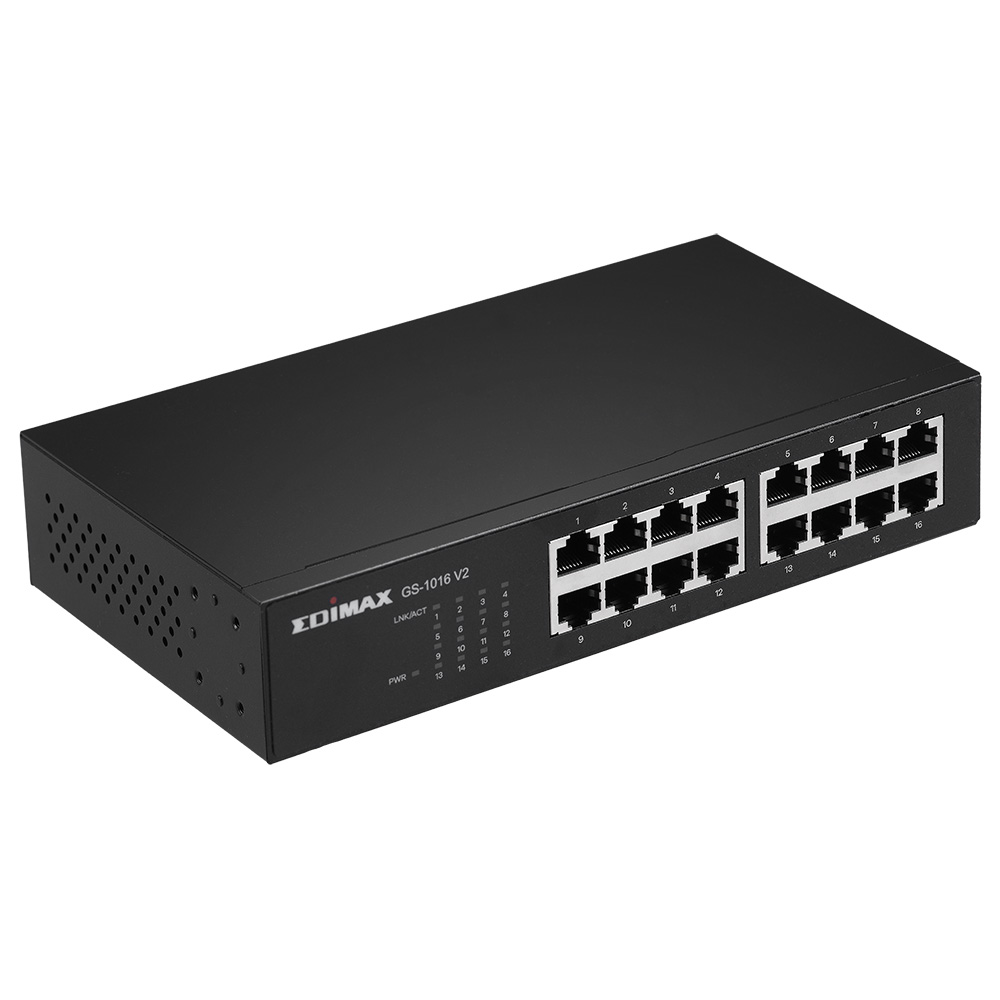

16-Port Gigabit Switch
GS-1016 V2
  • Gigabit High Speed: Equipped 16 Gigabit Ethernet ports with full-duplex and 10KB jumbo frames support
  • QoS for Improved Traffic: Supports IEEE802.1p QoS for ensuring first priority for video and voice traffic
  • High Performance & Reliable Connection: Supports IEEE 802.3x Flow Control, Auto-Negotiation, No-Blocking Wire Speed, Auto-MDI/MDI-X, Auto-Correction and loop detection
  • Energy Efficient & Power Saving: Complies with IEEE 802.3az Energy Efficient Ethernet, Inactive Link Detection and Cable Length Detection for power saving
  • Plug-and-Play & Flexible Deployment: No software or configuration required and designed for desktop, wall-mounted or rack-mounted flexible deployment

Share


Efficiently Upgrade or Expand Networks
with High-Performance Gigabit Speed

For Home, Small Office and Enterprise

Gigabit High-Speed Network

Delivers up to 2000Mbps of throughput per port at full-duplex mode
to servers, workstations and other attached devices to save time
when transferring large files.



QoS for Improved Traffic


Supports 802.1p QoS for ensuring first priority for voice and video traffic for reduced package loss, lower latency and jitter on the network.



High Performance and Reliable Connection


Featuring IEEE 802.3x Flow Control. Auto-Negotiation, No-Blocking Wire Speed, Auto-MDI/MDI-X, Auto-Correction, Loop Detection, Store-and-Forward Architecture which filters fragment & CRC error packets for maximizing network performance.



Energy Efficient and Power Saving

To comply with the IEEE802.3az Energy Efficient Ethernet standard to reduce energy consumption and save costs.



Plug-and-Play & Flexible Deployment

No software or configuration required, designed for desktop, wall-mount or rack-mount for flexible deployment.



Desktop

Wall-Mount

Rack-Mount



Ideal Applications



Home & Small Office

Small and Medium Business

Enterprise



Application Diagram

Share


HARDWARE ​

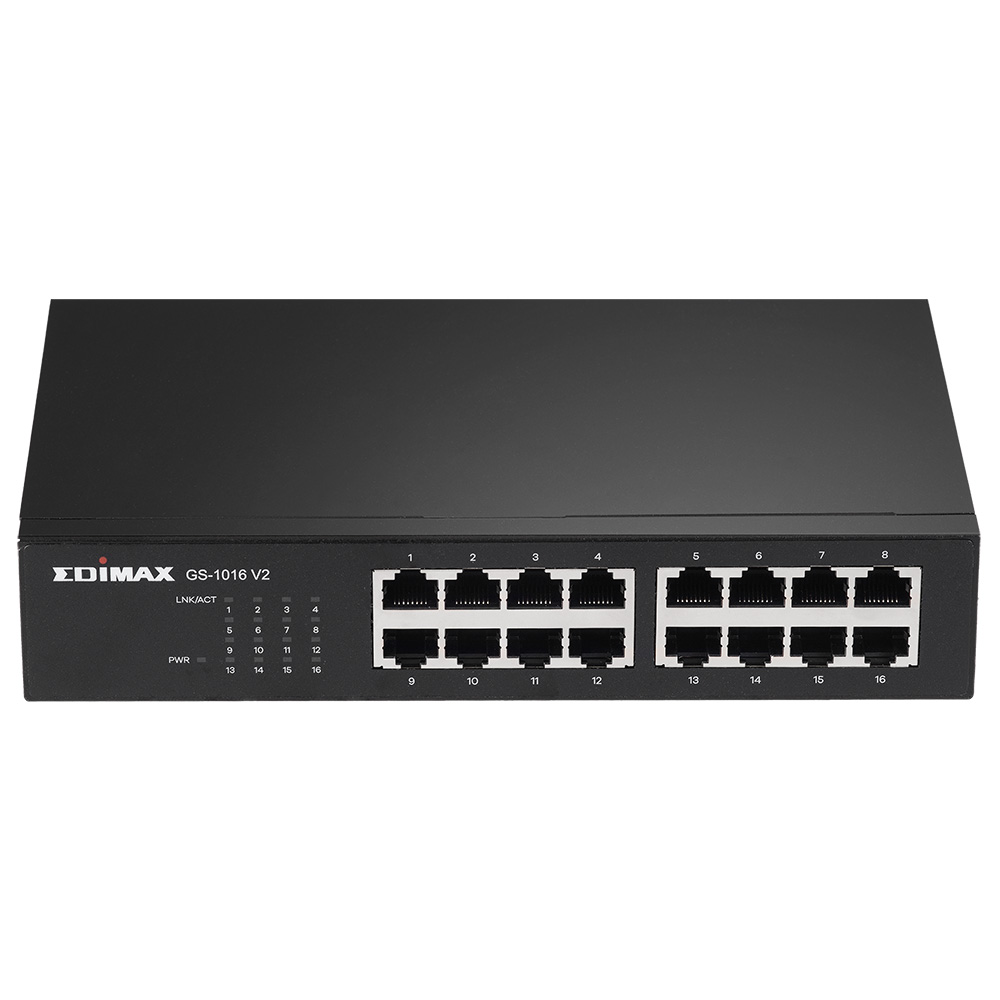

Ports  16 x RJ-45 10/100/1000Base-T ports
Transmission Method Store and forward
LED Indicator Per port: Link/Act
Per unit: Power

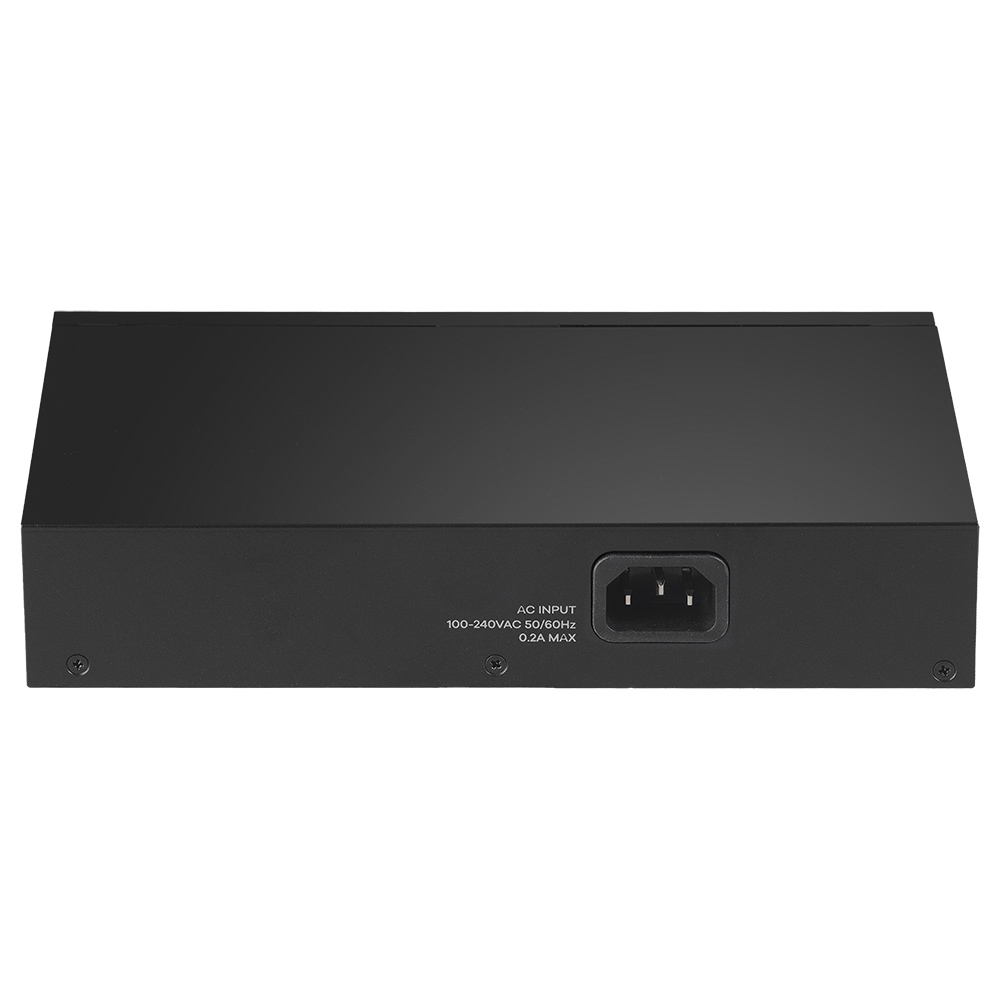

Power Input  100-240V AC, 50-60Hz, internal power supply
Mounting Desktop / wall-mount / rack-mount (rack-mount kit included)
Housing Metal
Fan  Fanless
Dimension   215(W) x 42(H) x 133(D) mm
Weight  0.85kg
PERFORMANCE
Switching Capacity 32Gbps
MAC Address 8K
Buffer Memory 4.1Mb
Jumbo Frame 10K (Bytes)
Filtering / Forwarding Rates Max. 23.8Mpps
1000Mbps port – 1,488,000pps
100Mbps port – 148,800pps
10Mbps port - 14,880pps
OTHERS
Standard IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3p QoS (Quality of Service)
IEEE 802.3x Full-duplex and flow control
IEEE 802.3az Energy efficient Etherent
Environmental Condition Operating Temperature: 32~104°F (0~40°C)
Storage Temperature: -40~158°F (-40~70°C)
Operating Humidity: 10~90% (NonCondensing)
Storage Humidity: 5~90% (NonCondensing)
Certification CE, FCC
*Maximální výkon, přenosové rychlosti a pokrytí záleží na síťových podmínkách a faktorech životnícho prostředí.
* Specifikace a design se mohou změnit bez předchozího upozornění.
