Power over Ethernet (PoE) is typically limited to a range of 100 meters due to cable capacity. For longer-distance PoE networking though, the GP-101ET PoE+ Extender is the perfect accessory – increasing capacity up to another 100 meters (328 ft). Its a 1-Port Gigabit PoE Extender with plug and play installation requiring neither configuration nor extra electrical power, and makes for an innovative and cost-effective PoE repeater that extends power and data for another 100 meters. Extend your network for a PD (Powered Device) such as WLAN access points, network cameras, IP phones and others, with Gigabit high-speed for greater deployment flexibility.

IEEE 802.3at/af Power over Ethernet Standard
The GP-101ET Extender can be connected to any IEEE 802.3at/af end-nodes such as WLAN access points, network cameras, Voice over IP (VoIP) telephones and IP-based appliances where the IEEE 802.3at/af in-line Power over Ethernet port is supported.

Extended Range with Higher Cost Efficiency
Enables the Ethernet cable to carry both data and power beyond the 100 meters limitation for another 100 meters. This reduces the need for cable installation and eliminates the need for extension cords or electrical outlets on the wall, ceiling or any unreachable place. Overall lower installation costs and simplified deployment efforts.

Plug & Play, Easy Installation
No additional power supply or setup required for easy plug & play installation.

Reliable & Flexible Power Supply
Featuring PoE short circuit protection to safeguard network devices and protect against damage.





---

APPLICATION DIAGRAM


SPECIFICATIONS


HARDWARE
Ports	1 Port RJ-45 10/100/1000Base-T Input Port 1 Port RJ-45 10/100/1000Base-T PoE Output Port
LED Indicators	Link/ACT and PoE
Power Input	IEEE 802.3af, IEEE 802.3at
Power Consumption	1.2 Watts
Dimensions (L x W x H)	86.8 x 79.3 x 25.8 mm
Weight	200g
POWER OVER ETHERNET
Standard	IEEE802.3af and IEEE802.3at
Power Output	IEEE 802.3af
Pin Assignment	PoE Input Port: 1/2(+), 3/6(-) End-Span; 4/5 (+), 7/8 (-) Mid-Span PoE Output Port: 1/2(+), 3/6(-) End-Span
PoE Power Output	15.4W (IEEE 802.3af)
ENVIRONMENT
Temperature	Operating: 0 ~ 40℃ Storage: -40 ~ 70℃
Humidity (Non-condensing)	Operating: 10 ~ 90% Storage: 5 ~ 90%
STANDARDS COMPLIANCE
Standards	IEEE 802.3 10BaseT Ethernet IEEE 802.3u 100BaseTX Fast Ethernet IEEE 802.3ab 1000BaseT Gigabit Ethernet IEEE 802.3af Power Over Ethernet (PoE) IEEE 802.3at Power Over Ethernet Plus (PoE+)
Certifications	FCC, CE

PACKAGE CONTENTS


• GP-101ET PoE Extender
• Quick Installation Guide

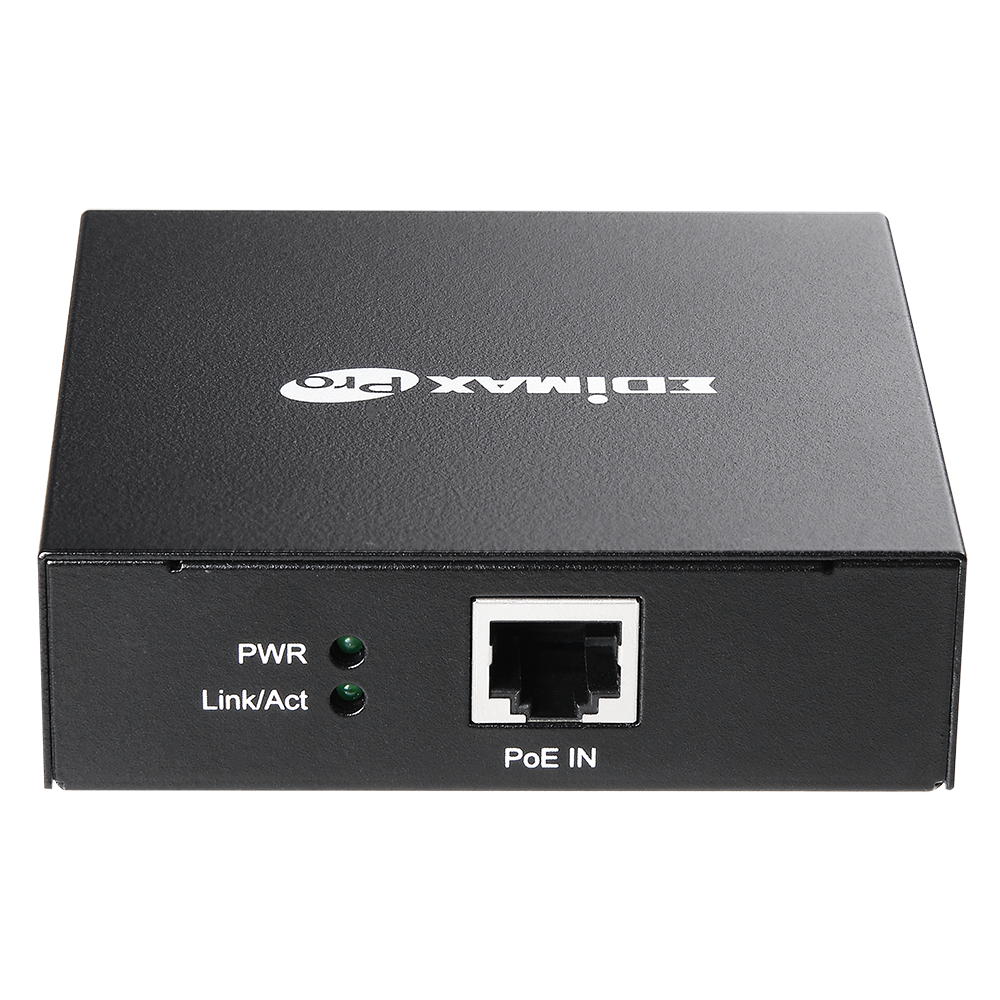

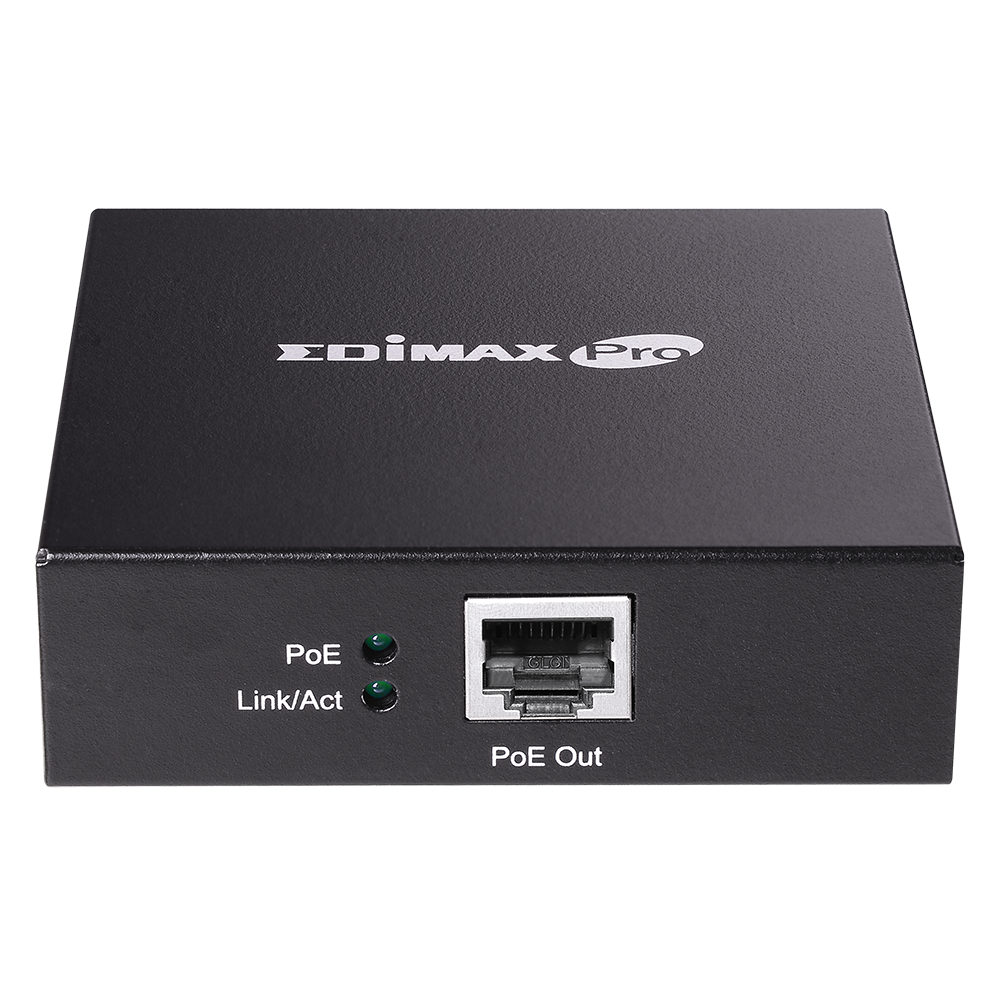

HARDWARE INTERFACE
