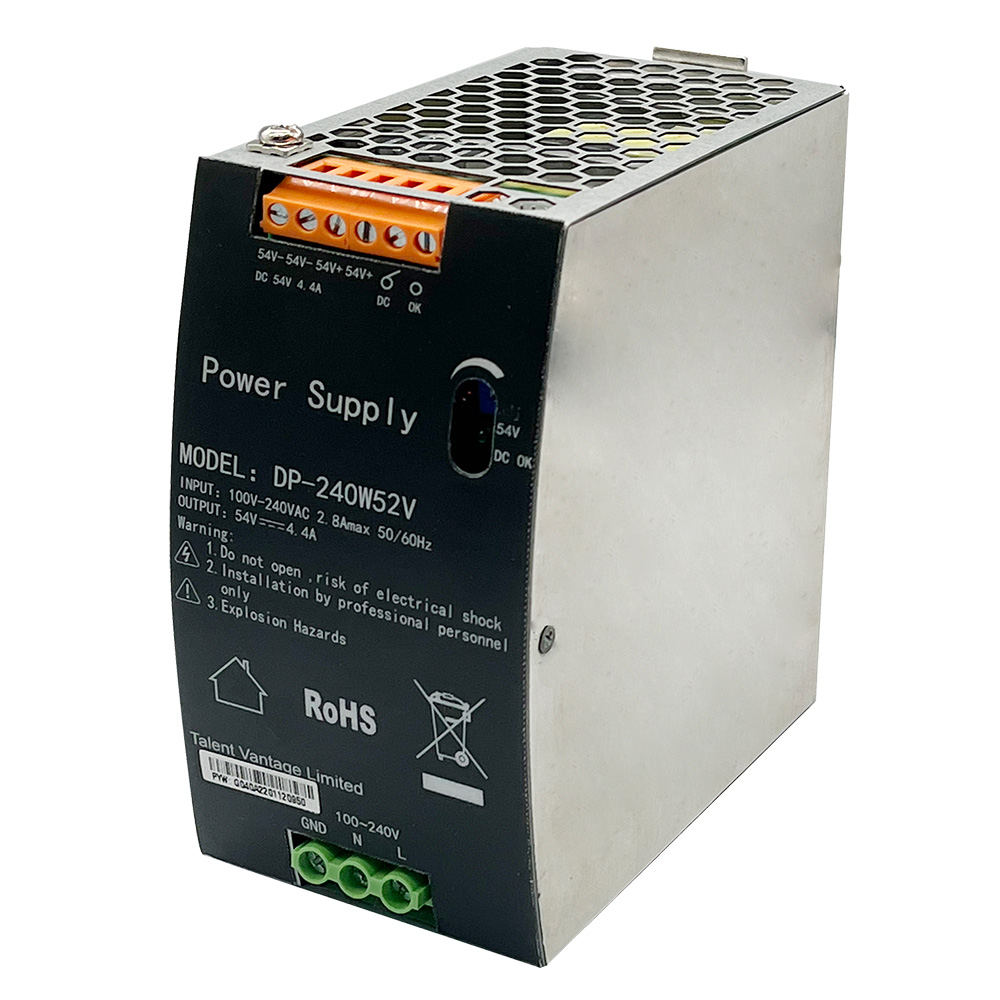

The DP-240W52V power supply is designed to power the EDIMAX IGS-1210P, IGS-5408P and IGS-5416P  industrial DIN-rail switches, providing them with a stable power supply. Equipped with short-circuit, over-current and overvoltage protections, ensuring safe operation of the powered devices, the DIN-Rail Power Supply is designed to be easily mounted on a TS35/7.5 or TS35/15 standard DIN rail and able to operate in -25~70°C harsh environments, making it an ideal solution for industrial applications.

​SPECIFICATIONS
​

OUTPUT POWER​
Output Voltage	52VDC
Output Current	4.6A (Max.)
Output Power	240W
Ripple Noise	<200mV
Voltage Regulation Range	±21%
Adjustable Voltage Range	48~56VDC
INPUT POWER
Voltage Range	90~264VAC
Frequency Range	47Hz~63Hz
Power Efficiency	94%
PROTECTION FUNCTION
Output Overvoltage Protection	105~150% Swing Self-recovery
Over Current Protection	105~150% Constant Pressure, Swing Self-recovery
Short Circuit Protection	Self-recovery when the fault condition removed
OTHERS
Dimension	122 x 114 x 63mm (L x W x H)
Weight	818g
Environmental Condition	Temperature: Operating Temperature: -25~70°C (-130~158°F) Storage Temperature: -40~85°C (-40~185°F) Humidity: ​Operating Humidity: 20~90% RH (NonCondensing) Storage Humidity: 10~95% RH (NonCondensing)
Certification	FCC, CE LVD EN62368, UL UL62368, UL CB IEC62368
