10GbE SFP+ DAC Direct Attach Cable (EA1-005D / EA1-020D)
EA1 Series
  • High-speed data rates up to 10Gbps
  • Compatible with SFP+ MSA (Multi-Source Agreement)
  • Backward compatible to SFP (1Gbps)
  • Easy plug-and-play with hot-pluggable SFP 20-PIN footprint
  • I/O connector designed for high speed differential signal applications
  • Improved Pluggable Form-Factor (IPF) compliant for enhanced EMI/EMC performance
  • Lower power consumption with 0.5W Max.
  • Work with any devices equipped a SFP+/SFP port such as switch, storage, server, NIC (PCI-E adapter), date center, high-performance computing and etc.

Share


Cost Effective High-Bandwidth
10GbE SFP+ Copper Connection
The EA1 series 10G SFP+ DAC is a copper cable designed with SFP+ connectors on both ends and is less expensive than a 10G optical transceiver that support connections of up to 10Gbps data transmission rate. Servers and network equipment can be directly connected to ToR (Top-of-Rack) switches, which also directly saves on costs.
High Performance and Reliability
Compatible with SFP+ MSA
The SFP+ 10G DAC cable is compliant with the current SFF-8431, SFF-8432 and SFP+ MSA (Multi-Source Agreement) specifications and is compatible with EDIMAX and other brand products with standard SFP+/SFP ports, offering you an array of options with top performance and reliability.
Wide Compatibility
Backward Compatible to SFP (1Gbps)
The EA1 Series is backward compatible with the SFP (1Gbps). Offering shorter-distance, high-density connections between networking equipments such as network switch, server, Network Attached Storage (NAS), storage area network, NIC (PCI-E adapter), data center or high-performance computing.
Easy Plug-and-Play
Hot-Pluggable SFP+ Supported
Equipped with plug-and-play Hot-Pluggable or said Hot-Swappable SFP+ connectors on both ends. No configuration required, in addition, there is no need to shut down or put the data on hold when support inserting or pulling out the transceivers to avoid network down-time.
Share


HARDWARE ​
Cable Type  Passive Copper Twinax Cable, Oxygen-Free Copper
Connector SFP+ Connectors on Both Ends
Conductor Gauge 30AWG
Jack PVC
Dimension Connector: 13.6(W) x 57(D) x 8.5(H) mm
Cable Length:

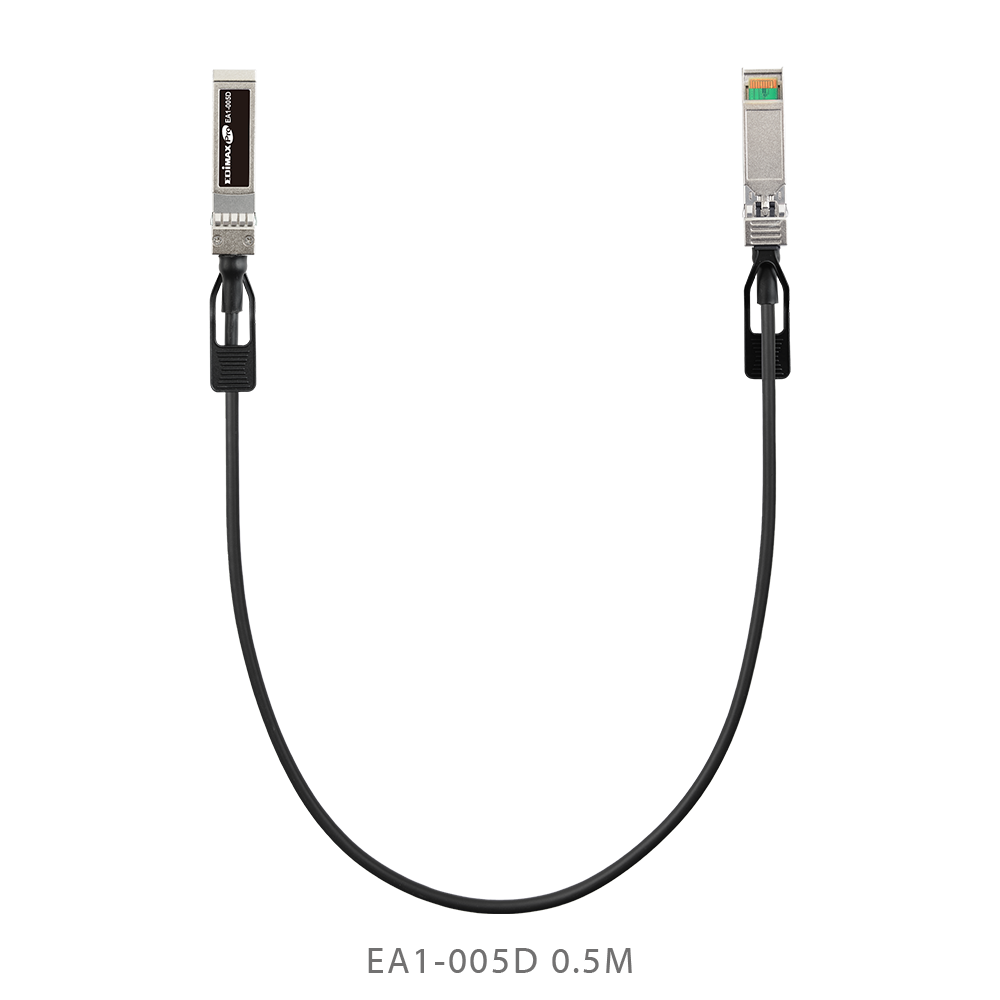

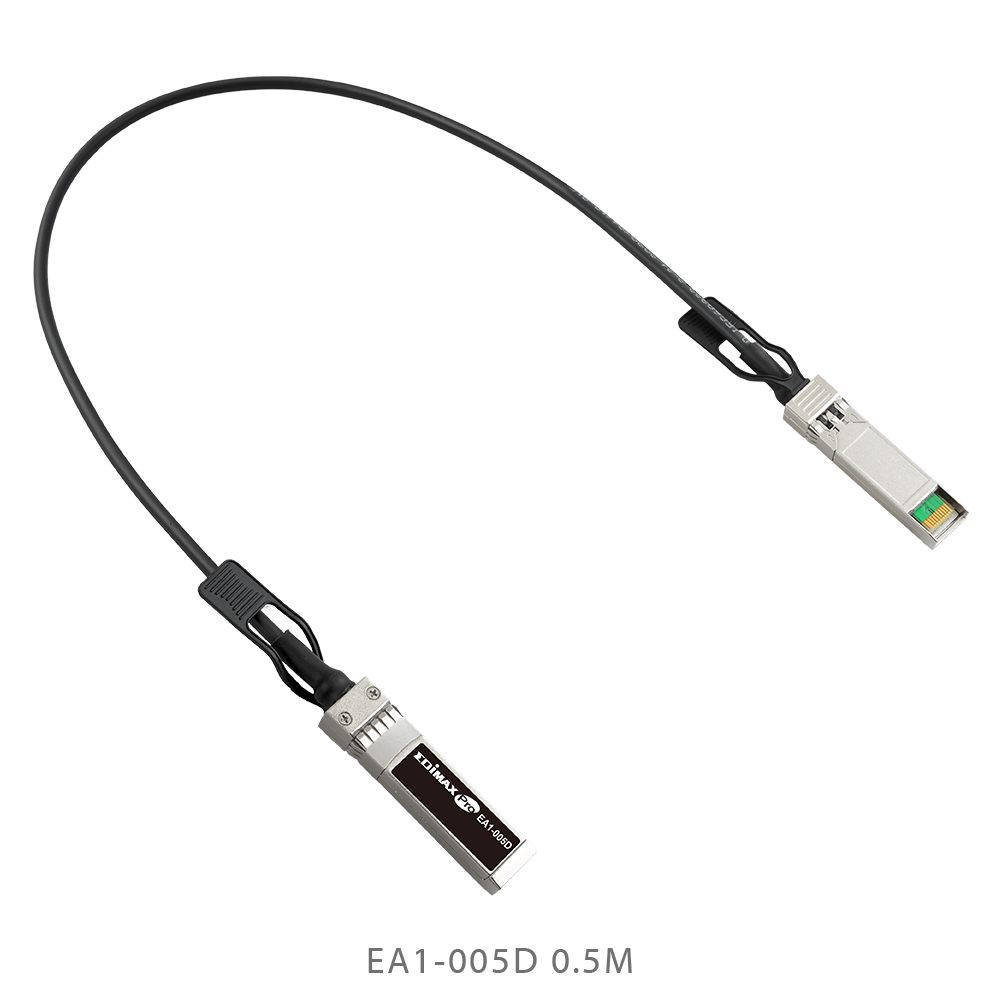

•EA1-005D: 0.5 Meter/1.64 Feet

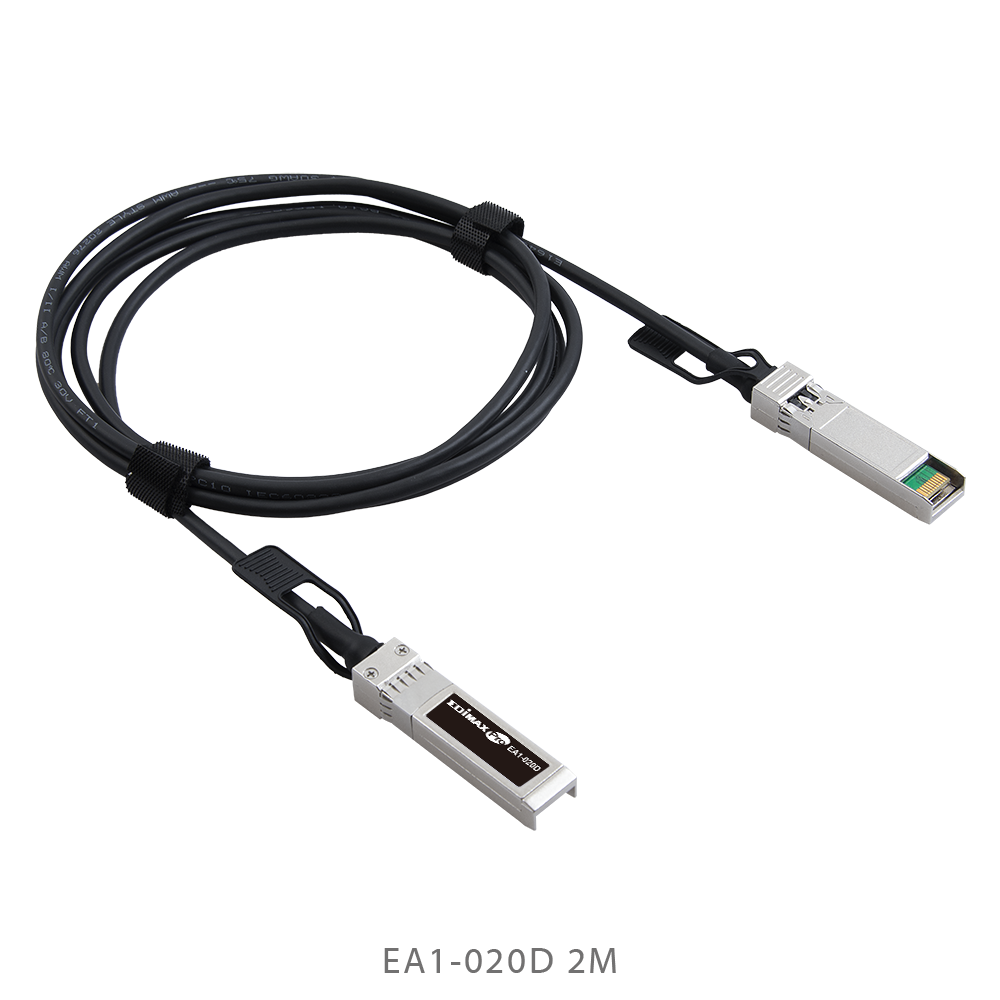

•EA1-020D: 2 Meter/6.54 Feet
PERFORMANCE
Data Transmission Rate Up to 10Gbps
Bit Error Rate(BER) > 10-12
OTHERS
Standard SFP+ MSA (Multi-Source Agreement)
SFF 8431, SFP+ High Speed Electrical Interface
SFF-8472, Digital Diagnostic Monitoring Interface for Optical Transceivers
Temperature Range Storage: -40~ 85 °C (-40~185°F )
Operation: 0~ 70 °C (32~158°F )
Certification CE, RoHS
*Maximální výkon, přenosové rychlosti a pokrytí záleží na síťových podmínkách a faktorech životnícho prostředí.
* Specifikace a design se mohou změnit bez předchozího upozornění.
