Outdoor Lightning Arrester
LT-610
  • Protects your device from lightning strikes and electrical surges
  • Works with 2.4/5GHz devices for outdoor wireless applications
  • Features N-male (plug) to N-female (jack) connector type
  • Withstands up to 10KA current
  • Plug-and-Play easy installation with no configuration needed
  • Compact size and rugged housing



The Edimax LT-610 Outdoor Lightning Arrester Kit provides lightning protection for your wireless equipment. By adding a simple arrester to your wireless antenna cabling, you can reduce the costs of damaged access points, switches or other network devices and protect your entire network from lighting strikes and electrical surges.

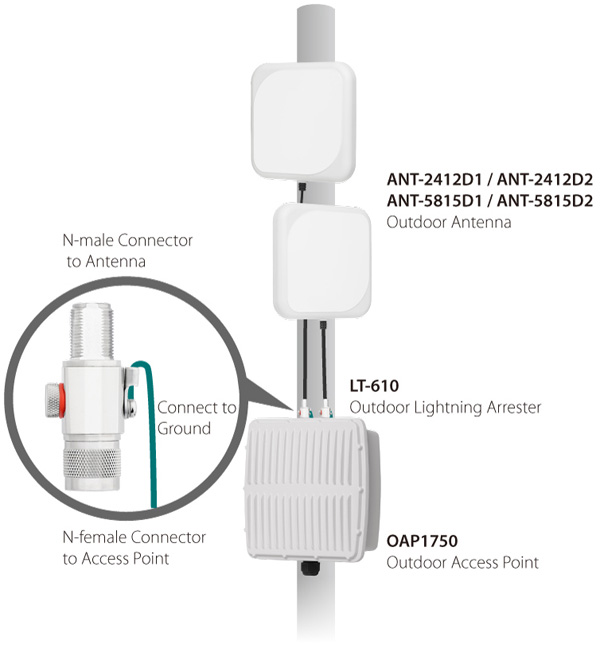

APPLICATION DIAGRAM

Simply connect the Outdoor Lightning Arrester LT-610 directly inline between your access point and your outdoor antenna cable, and connect the ground wire to a ground pole.


ELECTRICAL SPECIFICATIONS

Type Gas discharged
Frequency Range 0 ~ 6GHz
V.S.W.R 0 ~ 5GHz 1: 1.5
5 ~ 6GHz 1: 2.0
Gain Loss 0.5dB
Max. Withstand Current 10KA
DC Breakdown Voltage 90±20%(@100V/S)
Impulse Breakdown Voltage <600V(@1KV/μs)
AC Discharge Current 5A(@50Hz)
Surge Discharge Current 5KA(@8/20μs)
Insulation Resistance ≧1000mΩ
Electrode Capacitance <1.5P
ENVIRONMENTAL & MECHANICAL CHARACTERISTICS
Temperature -20 ~ 70 °C
Humidity 95% RH
Connector Type N-male (male pin) to N-female (female pin)
Connector Body Material Nickel-plated brass
Body Material Anodized aluminum
Pin Material Gold-plated brass
Dimension (W x D x H) 22 x 68 x 25 mm
Weight 110g
ACCESSORIES
Mounting Brace Wall-mount & pole-mount brace kit with screws

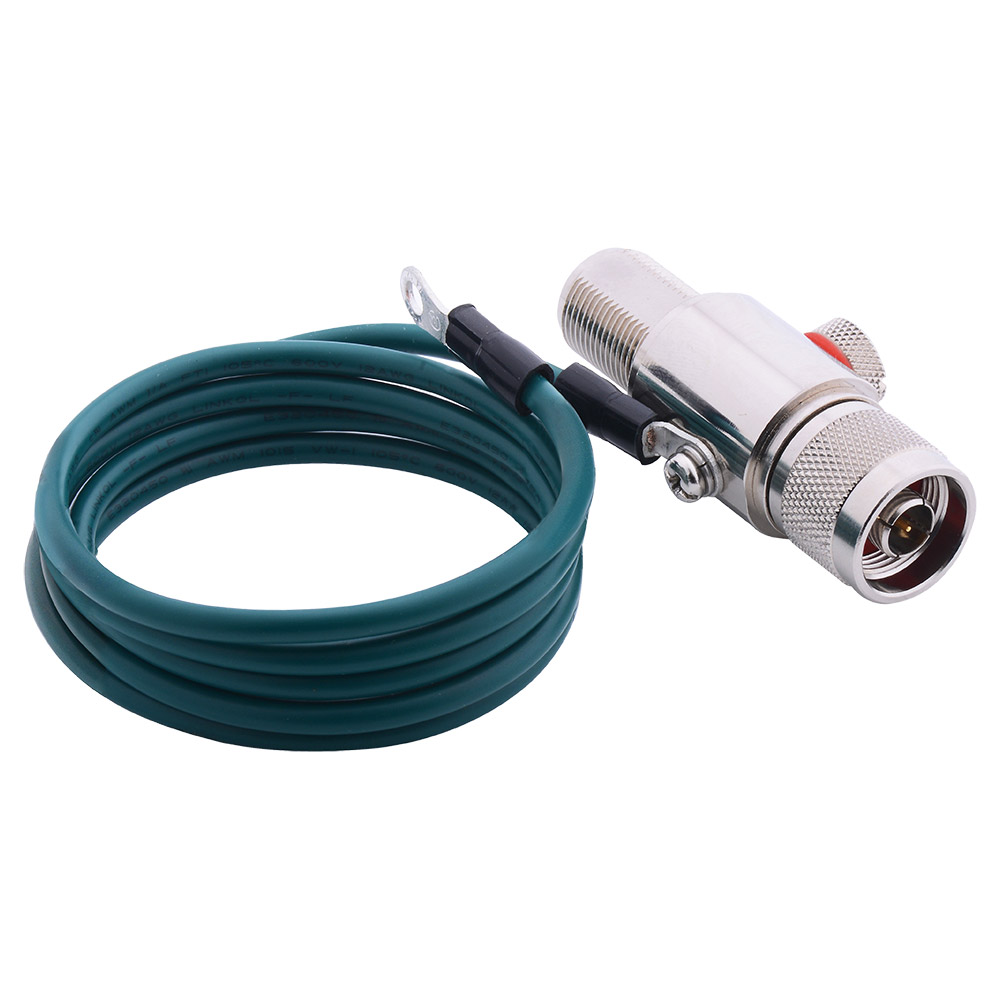

Cable Ground cable
*Maximální výkon, přenosové rychlosti a pokrytí záleží na síťových podmínkách a faktorech životnícho prostředí.
* Specifikace a design se mohou změnit bez předchozího upozornění.
