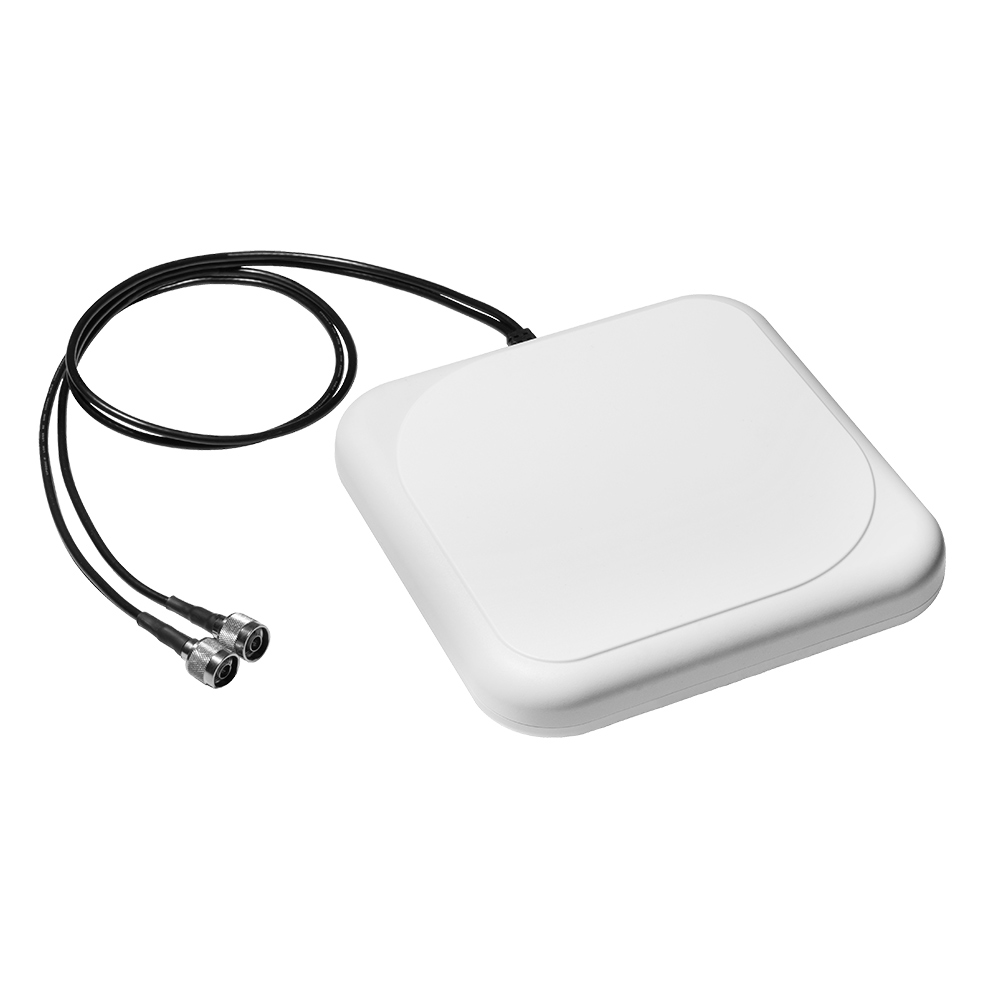

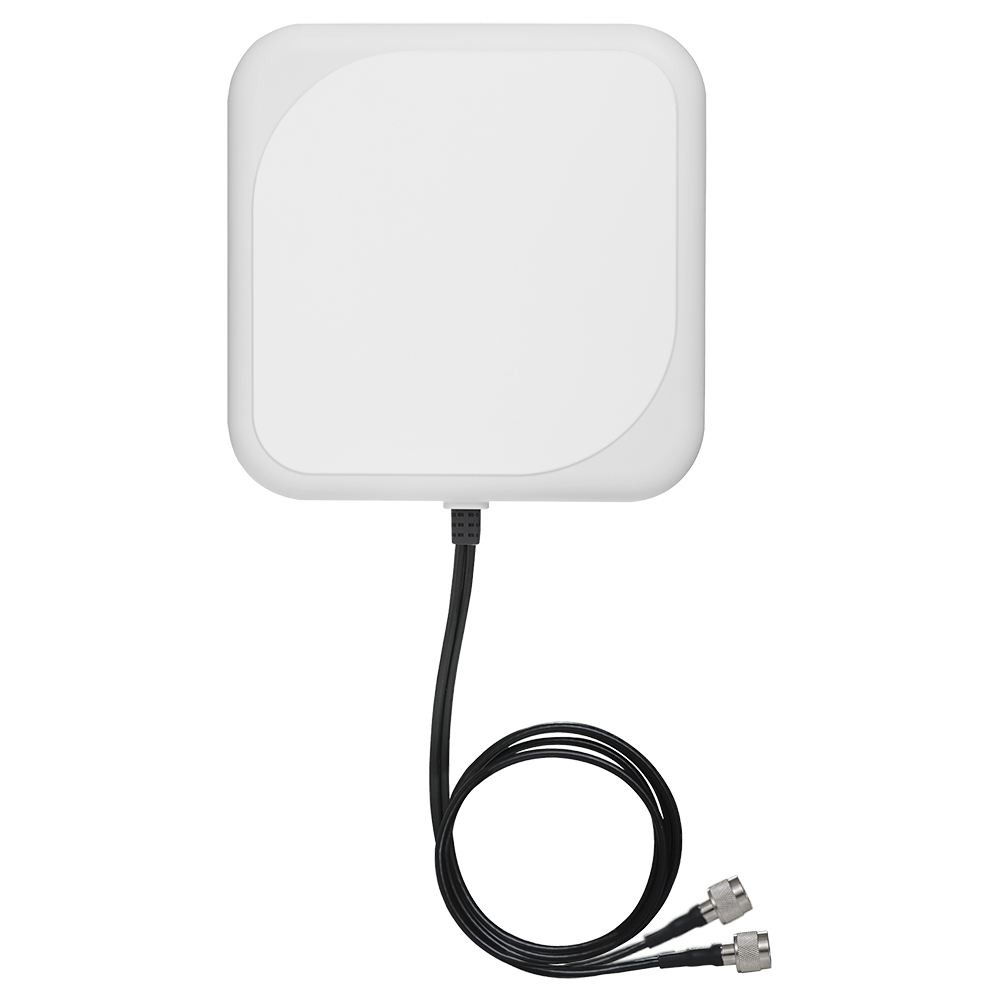

2.4GHz 12dBi High Gain Dual Polarization Directional Antenna
ANT-2412D2
  • Supports 802.11b/g/n 2.4GHz wireless.
  • Provides 12dBi directional operation for point-to-point, high performance and long range connections.
  • Works with N Type female connector.
  • Dual-Polarization to avoid interference.
  • Easy installation mounting kit.
  • Features IP55-rated housing.

Share


ELECTRICAL SPECIFICATIONS

Frequency Range 2,400 ~ 2,500GHz
Max. Gain 12dBi
Antenna Type Uni-directional, Flat Panel
V.S.W.R. 2.0:1 (max.)
Polarization Linear, ±90°
HPBW / Horizontal 30°
HPBW / Vertical 30°
Front to Back Ratio -20dB (Max.)
Isolation 20dB
Input Impedance 50Ω
Cable CFD200, 1000mm
Connector N-Type x2
Power Handling 10W
Lightning Protection DC Ground
ENVIRONMENTAL & MECHANICAL CHARACTERISTICS
Temperature -20 ~ 70 °C
Humidity 95% RH
Radome Color Gray-white
Radome Material ABS
Dimension (L x W x H) 240 x 240 x 40mm
Weight 747g
Weatherproof IP55
Mount Type Pole Mount or Wall Mount
ACCESSORIES
Mounting Brackets Wall-Mount & Pole-Mount Bracket Kit
*Maximální výkon, přenosové rychlosti a pokrytí záleží na síťových podmínkách a faktorech životnícho prostředí.
* Specifikace a design se mohou změnit bez předchozího upozornění.
