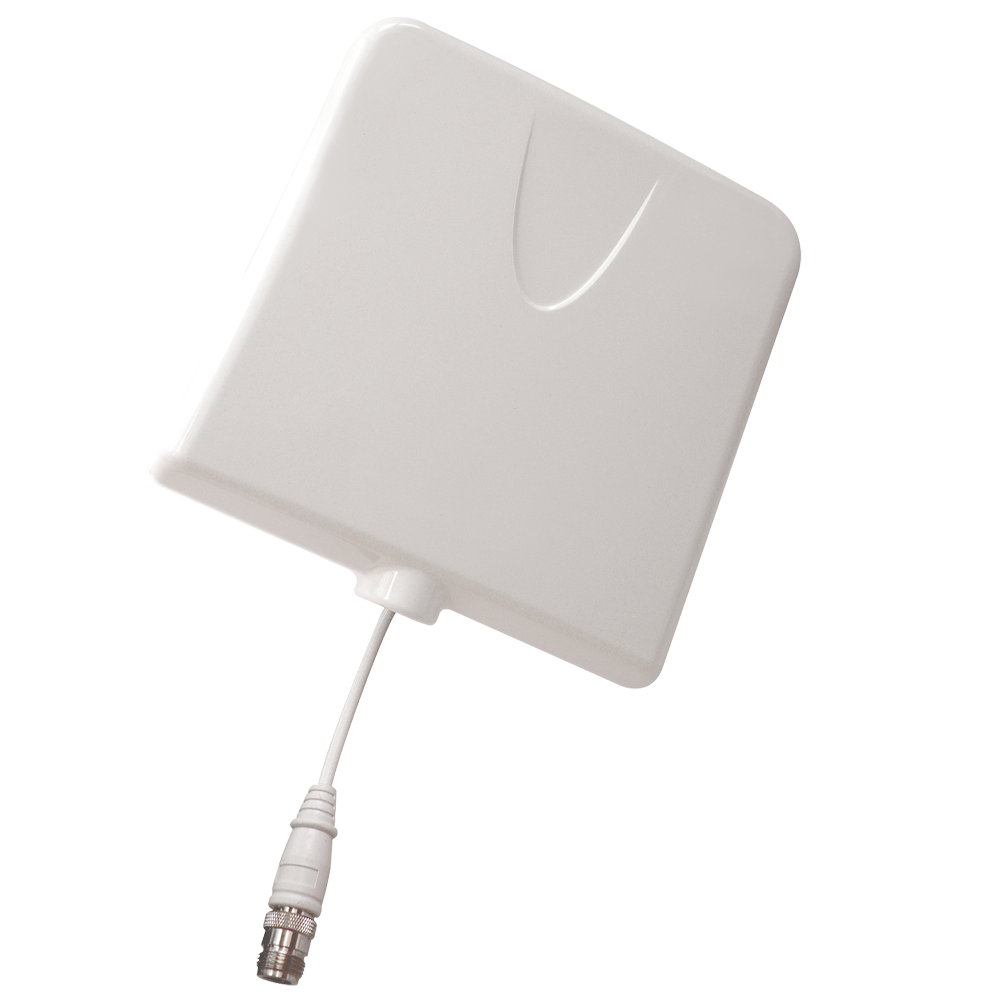

Outdoor Directional Antenna - 9dBi, N Type Connector
EA-OD9D
  • Complying with IEEE 802.11g/b standard
  • Quick relocation to have best Wi-Fi signal
  • Receiving and transmitting up to 400m~900m
  • Feasible to avoid potential "Dead spots"

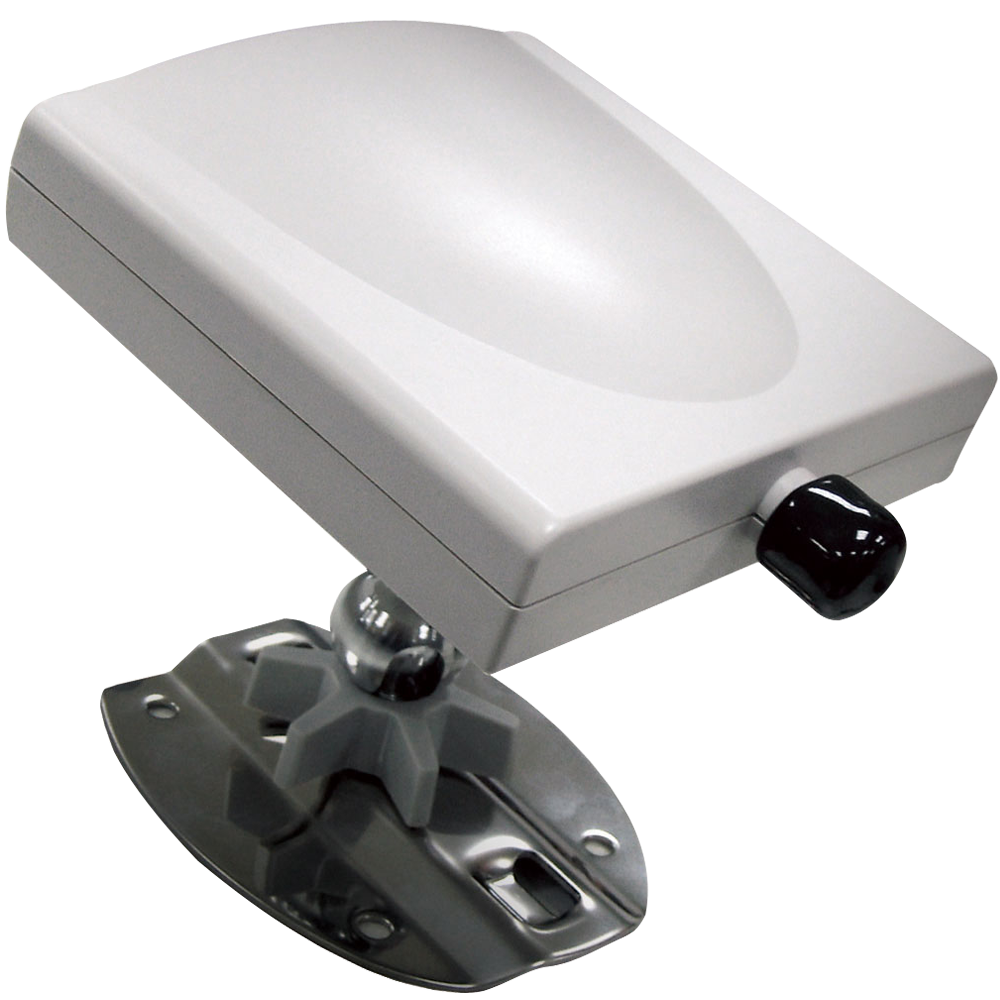

  • Provides easy installation mounting kits

Share


EA-OD9D the 9dBi Outdoor Directional Antenna designed to provide increased coverage for existing 802.11b or 802.11g networks.

EA-OD9D 9dBi Directional  Antenna connects to wireless 802.11b/g device, a variety of wireless PCI adapters, wireless routers, and access points on the market today to extend the range of coverage for the wireless network.

Share


Gain 9 dBi
Frequency Range 2400~2500MHz
VSWR 1.5 : 1 Max
Impedance 50Ohm
Power Handling 20W (cw)
Polarization Linear, Vertical
HPBW / Horizontal 65°
HPBW / Vertical 60°
FBR (Front to Back Ratio) 15dB
Lightning Protection DC ground
Survival Wind Speed 216km/h
Temperature -40~+80°C
*Maximální výkon, přenosové rychlosti a pokrytí záleží na síťových podmínkách a faktorech životnícho prostředí.
* Specifikace a design se mohou změnit bez předchozího upozornění.
