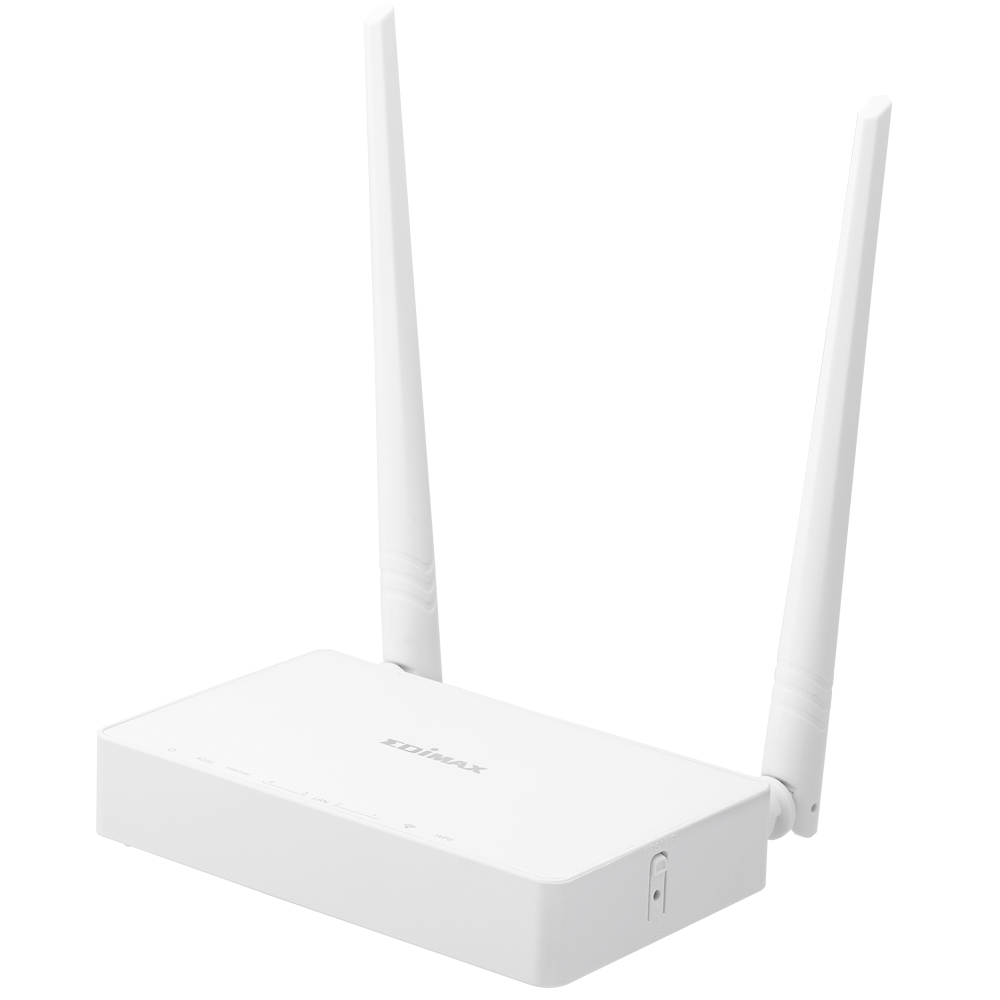

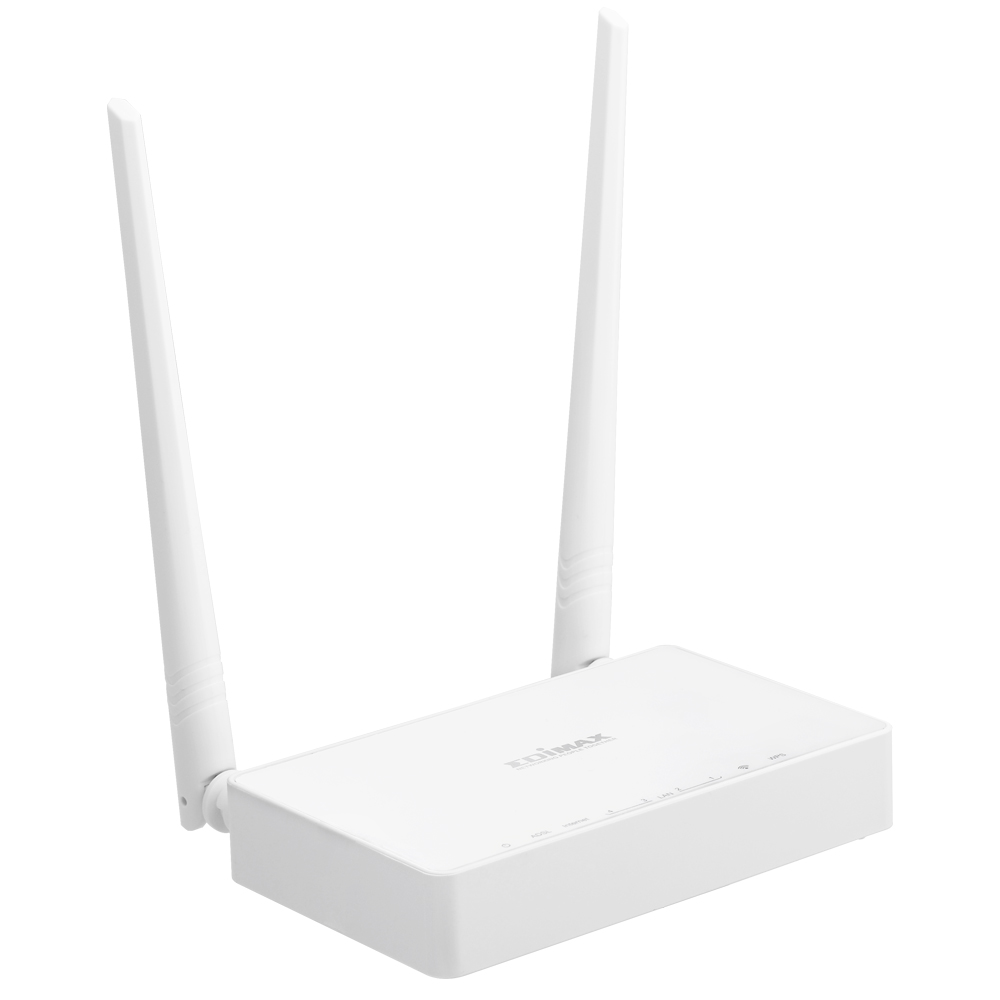

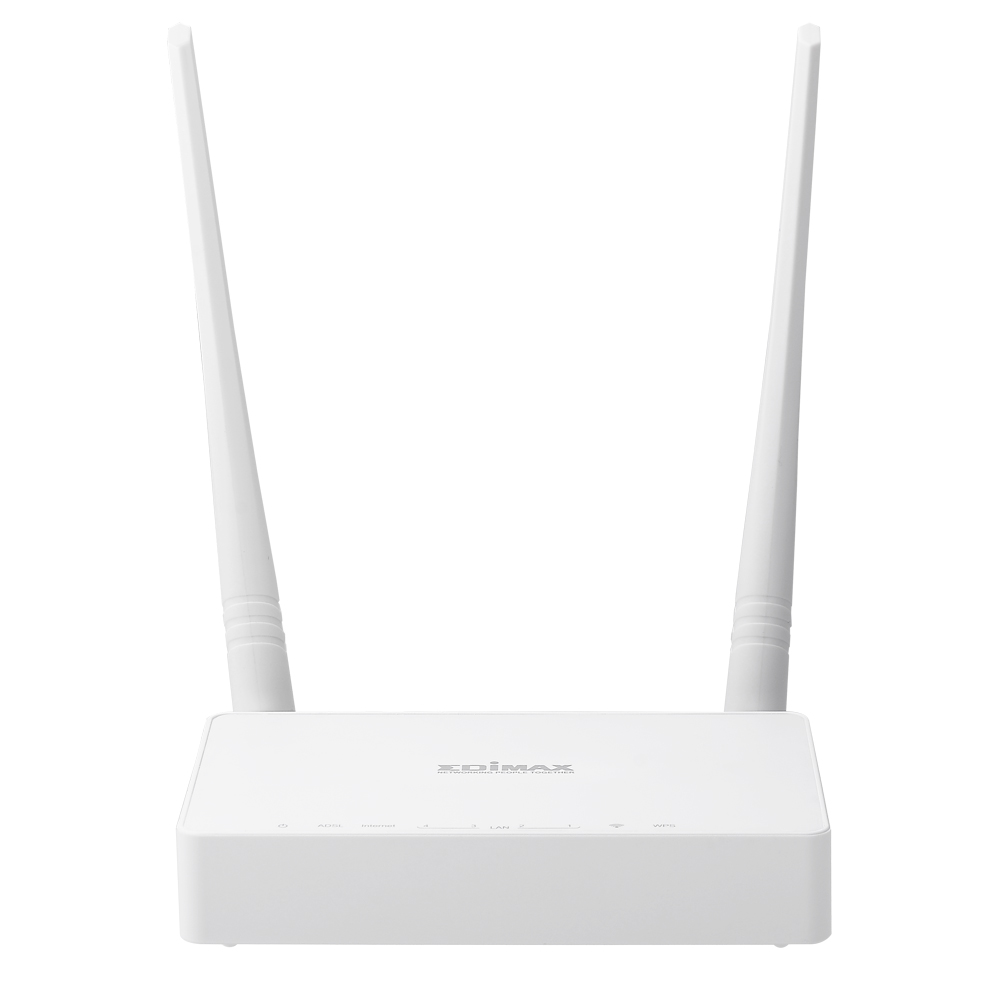

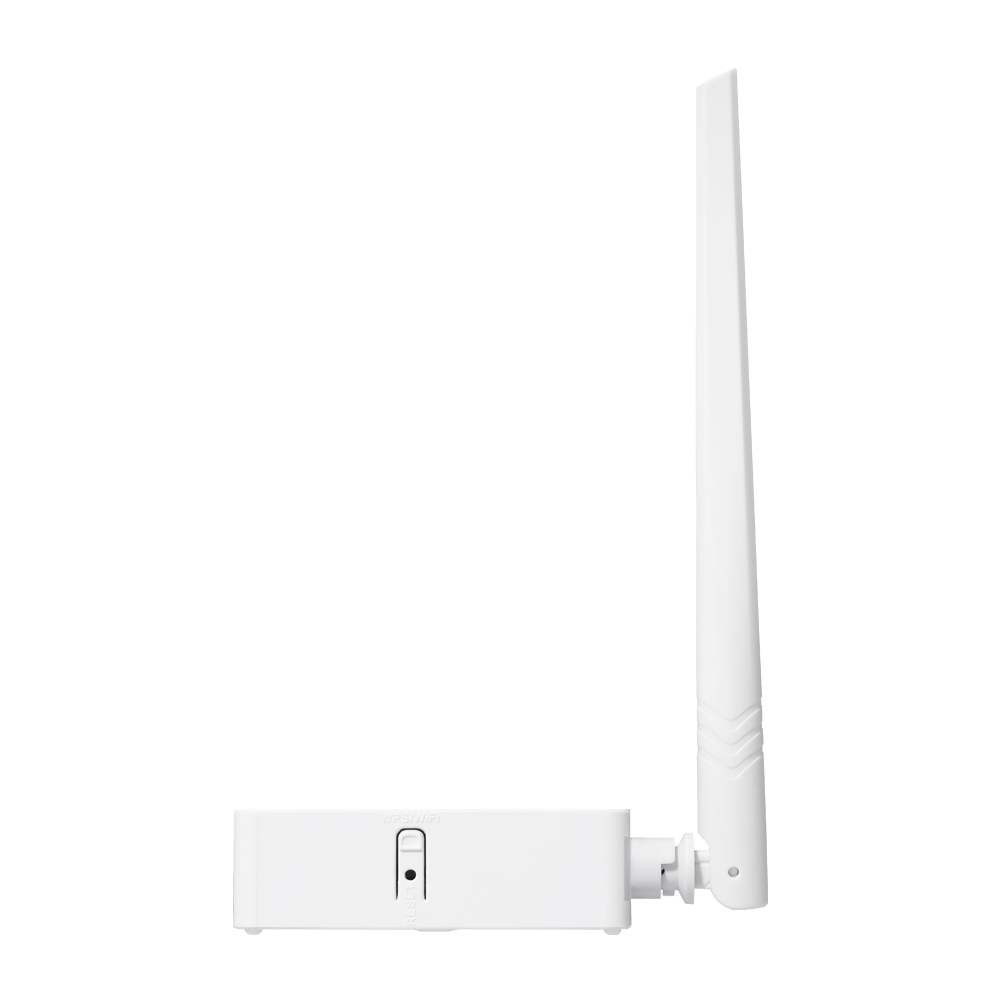

N300 Wireless ADSL2+ Modem Router
AR-7287WnA
  • 300Mbps wireless transmission rate with MIMO technology
  • Supports multiple SSIDs for up to four wireless networks
  • Powerful 5dBi antennas to boost wireless coverage
  • WPS(Wi-Fi Protected Setup) button with zero configuration for easy wireless security encryption
  • Easy setup wizard with built-in ISP selector
  • Support VPN Pass-Through (PPTP/L2TP/IPsec)
  • Reach of 6.5Km from your ISP DSLAM

Share


The Edimax AR-7287WnA is a high performance router that provides full ADSL2+ capability and superb reliability as a cost-effective networking solution for home. Compatible with the 802.11n wireless standard and with advanced MIMO technology, the AR-7287WnA provides up to 300Mbps data transmission rates and better coverage than a standard 802.11g/b router.

All-in-One Device

The AR-7287WnA is combining a high-performance router, modem, and a switch into a single device. The design frees up shelf space and no need extra cords & cables and the cost of leasing a router from your DSL service provider.

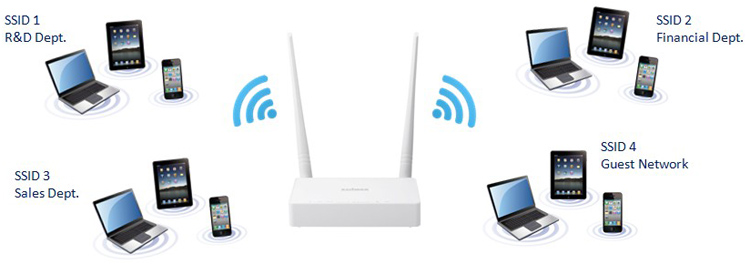

Multiple SSIDs
The AR-7287WnA supports multiple SSIDs for up to four wireless networks.







Other Benefits of AR-7287WnA

  • Powerful and Wide Coverage - Featuring two 5dBi high-gain antennas, the AR-7287WnA boosts your signal to ensure extended wireless networking range.
  • Lightning Protection - Protected from lightning strikes to help your device avoid the damage of a tough thunderstorm.
  • Supports TR-069 for Remote Management - The AR-7287WnA also supports TR-069 which is a protocol to define a common method for CPE devices to communicate with a server.
  • Easy Setup Wizard with Built-in ISP Selector - Setup AR-7287WnA using the unique and convenient multi-language setup wizard and follow a few simple steps to finish setup The setup wizard includes a built-in ISP selector to configure your ISP settings automatically.

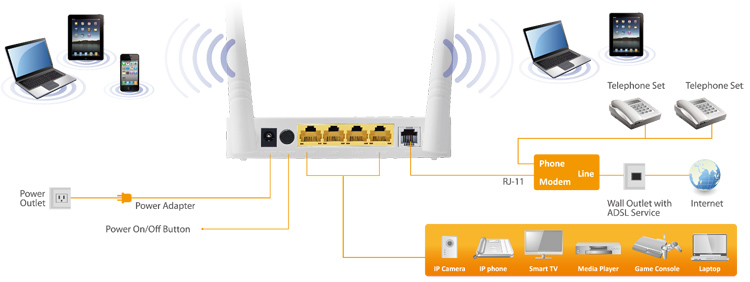

Application



Share


Hardware
Interface
  • 1 x RJ-11 WAN-port
  • 4 x RJ-45 Fast Ethernet LAN ports
Buttons
  • 1 x Reset button for factory default settings
  • 1 x WPS/Wi-Fi button
  • 1 x Power on/off button
LED Indicator
  • Power, ADSL, Internet, LAN 1–4, WLAN, WPS
Antenna
  • 2 x 5dBi external antenna
Memory
  • 2MB NOR Flash
  • 8MB SDRAM
Power Adapter
  • 12V DC, 0.5A
Dimension
  • 223(L)mm x 132(W)mm x 25(D)mm​
Weight
  • 155g
Wireless
Standards​
  • 802.11 b/g/n
Frequency
  • 2.4GHz
Maximum Data Speed​
  • 2.4GHz: up to 300Mbps
Output Power
  • 2.4GHz:
    - 11b: 16dBm-19dBm
    - 11g: 14dBm-16dBm
    - 11n: 13dBm-15dBm
ADSL Features
  • Annex A, B,I, J, L & M
  • ANSI T1.413i2
  • ITU G.992.1 (G.dmt), ITU G.992.2 (G.lite)
  • ITU G.992.3 ADSL2 (G.dmt.bis), ITU G.992.4 (G.lite.bis)
  • ITU G.992.5 (G.dmt.bisplus), ITU G.994.1 (G.hs)
  • ITU G.995.1, ITU G.996.1, ITU G.997.1
  • Power saving mode, L3 to L0 initialization
  • Supports multiple PVCs
  • Supports traffic shaping (ATM QoS) UBR, CBR, VBR-rt, VBR-nrt
  • Supports OAM F4/F5 loop-back, AIS, and RDI OAM cells
  • UNI 3.1/4.0 permanent virtual circuits
Routing Features
  • Routing (TCP/IP/UDP/ARP/ICMP)
  • 802.1D MAC Bridge
  • RIP v1 (RFC1058), RIP v2 (RFC1723)
  • IGMP Snooping (V1/V2)
  • IGMP Proxy (V1/V2/V3)
  • VLSM (RFC1878)
  • RFC 1877 PPP IPCP Extensions for Name Server Address
  • RFC 1877 PPP IPCP Extensions for Name Server Address (limited to DNS addresses unless the device supports NetBIOS)
  • RFC 0791 IP Fragmentation
  • IETF RFC 0919, IETF RFC 0922, IETF RFC 2644 IP Broadcast
Security
  • Denial-of-service (DoS) attack prevention
  • ​Hardware WPS configuration
  • 64/128-bit WEP, WPA and WPA2 security
Others
Certification
  • CE, RoHS
Management
  • Web-based configuration
  • Firmware upgradable<
System Requirements
  • Computer (with Fast Ethernet adapter or wireless adapter) running Windows 98/2000/XP/Vista/7/8/8.1/10, Linux, Mac OS
  • Web browser (Internet Explorer, Firefox, Opera, Safari)
  • ADSL subscription
Environment
  • Operating Temperature: 0℃~40℃
  • Storage Temperature: -40℃~70℃
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~95% non-condensing

Package Contents

  • 1 x AR-7287WnA N300 Wireless ADSL2+ Modem Router
  • 1 x Ethernet cable
  • 2 x RJ-11 Cable
  • 1 x Splitter
  • 1 x Power Adapter
  • 2 x Quick Installation Guide
  • 1 x CD with multi-language QIG and user manual
*Maximální výkon, přenosové rychlosti a pokrytí záleží na síťových podmínkách a faktorech životnícho prostředí.
* Specifikace a design se mohou změnit bez předchozího upozornění.
